The RCH Associates’ STEAMER is the only effective solution for generating ultra high purity steam that is used for wet oxidation and steam annealing of silicon and other semiconductor materials that doesn’t require H2. Only Dl:H2O is used to produce the steam and NO HYDROGEN IS REQUIRED.
View Datasheet

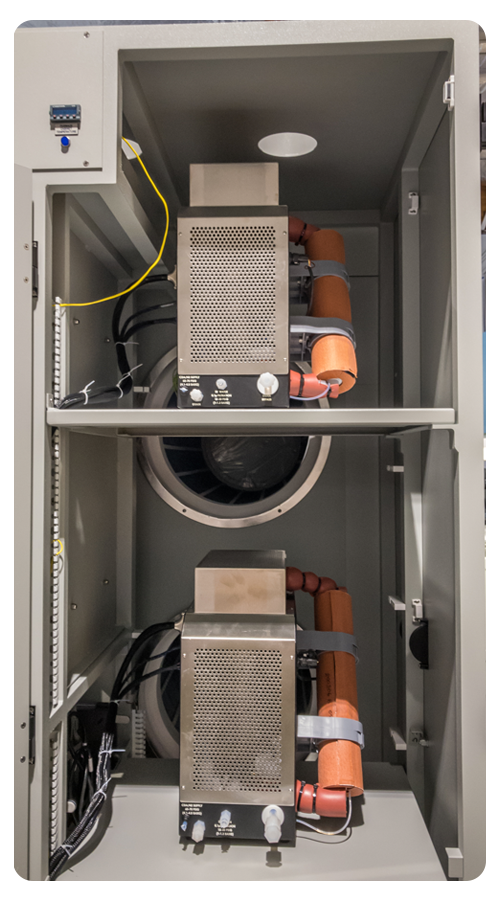

The STEAMER is a self-contained module that resides on a shelf in a standard gas source cabinet that is typically used in both HORIZONTAL and VERTICAL FURNACES. It is applicable to high volume production as well as pilot-line and research applications.
The primary technology of the STEAMER is based on a proprietary membrane. Dl:H2O is heated and then purified through the membrane, which renders the steam purity to equal or exceed the purity of steam generated by pyrogenic torches. And without the hazards and costs of using H2 with O2 to produce the hyper pure steam with a pyrogenic torch.
A further benefit of the STEAMER is the ability to produce much more steam flow than pyrogenic torches. The elevated flow of steam allows full saturation of the process tube, even larger tubes, which results in improved within-wafer and wafer-to-wafer uniformity. In addition, oxidation growth rates may increase 15% compared to pyrogenic torches.
With the STEAMER, the degradation of pyrogenic torch quartzware is eliminated. This greatly increases uptime, throughput and preventative maintenance requirements that are necessary with torch systems.
The STEAMER unit operates like a mass flow controller with common setpoint and readout controls. This allows ready interfacing to diffusion furnace gas system controls. Interlocks oversee the STEAMER operation to assure consistent operation with output signals for the host controller to readily monitor.
Facility requirements are simplified. Only a regulated supply of 16 megaohm Dl:H2O and a low volume Dl:H2O drain are required for STEAMER operation. Interconnects for interfacing Dl:H2O to the STEAMER are provided using common fittings. Power and host control interconnects are also provided for easy hookups.
VIEW OTHER PRODUCTS
- ASTRA Control
- Available Processes
- Processing Subsystems
- Diffusion Furnances
- Small Batch Systems
- Source & Pump Cabinets
Subscribe
Sign up with your email address to receive news and updates.
Benefits of the RCH Steamer™
- Eliminates the need for H2 to generate hyper-pure steam resulting in safe operation, improved performance and reduced costs. Only Dl:H2O is required to generate steam.
- Eliminates torch quartzware, which degrades during the generation of the pyrogenic “flame”. This results in high uptime and reduced maintenance.
- Improves furnace temperature flat zone profiles by eliminating the heat otherwise produced by pyrogenic torches. This results in improved uniformity and general temperature performance.
- SiPOS (oxygen doped polysilicon)
- Establishes high steam flow compared to torches for full tube saturation. This results in improved oxide uniformity and higher oxidation rates.
- Provides the same oxide dielectric integrity as steam generated by pyrogenic torches.
- Interfaces like a mass-flow controller to gas systems and host controls used by most all diffusion furnace systems. May be used on new installations and retrofits to existing furnace systems

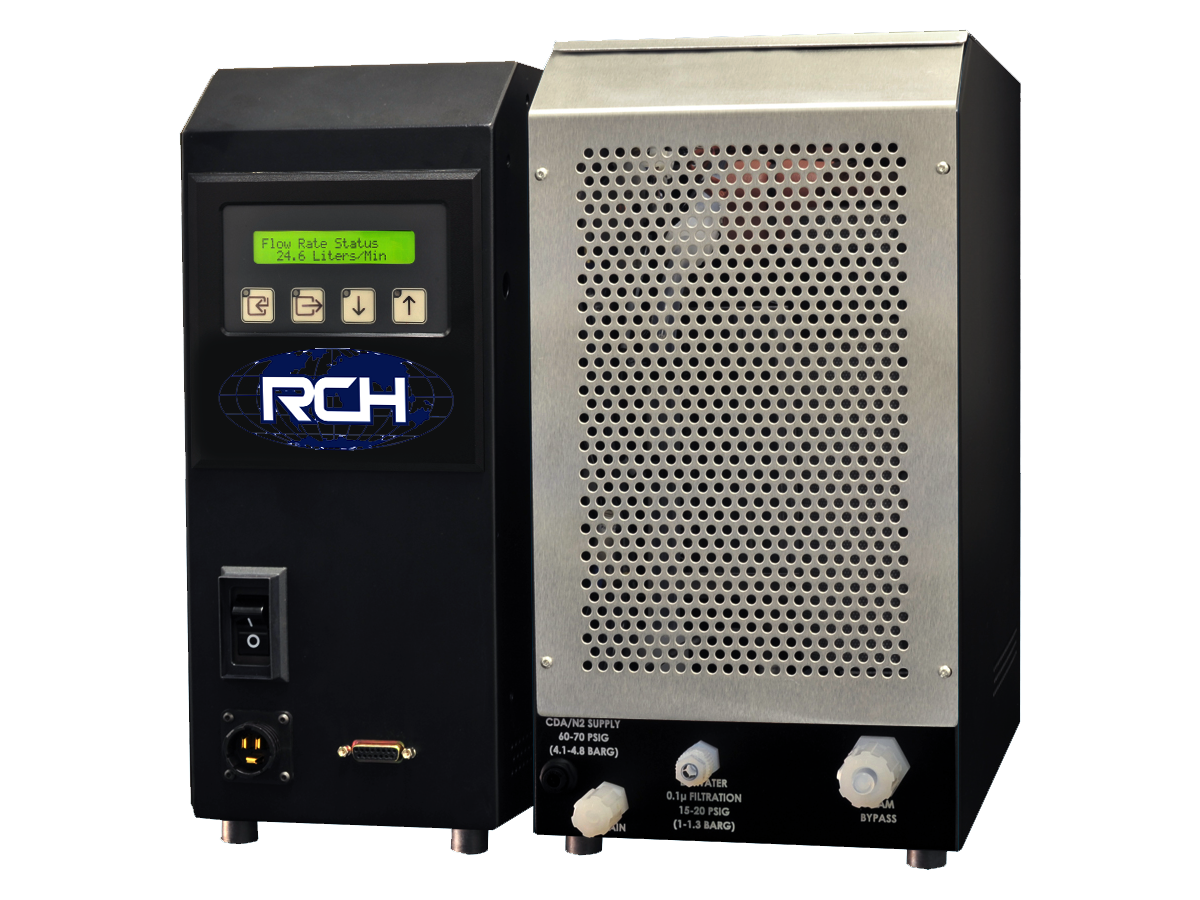

There are three (3) STEAMER models available that are configured by maximum flow:
- RCH Steamer™ Model 225: Maximum steam flow to 12.5 SLPM. (Download Datsheet)
- RCH Steamer™ Model 102B-25: Maximum steam flow to 25 SLPM. (Download Datsheet)
- RCH Steamer™ Model 102B-50: Maximum steam flow to 50 SLPM. (Download Datsheet)
The field-proven STEAMER is fully engineered, manufactured, serviced and warranted by RCH Associates, Inc.
For specific information on the STEAMER as it applies to your processing and equipment requirements for production, pilot-line or research applications, please contact Tarius Technology.
